MS-CS900 Series

Features:



  • Digital audio conference system of discussion function.
  • Digital conference system through RJ45 port and CAT6 cable
  • Conference system controller with USB on front panel for recording.
  • Ideal for use in board room, meeting room, conference room in hotel, office and government.
  • The capacity of system is 100 units and max 1000 units cascaded with more extension controllers.
  • Voting, simultaneous interpretation and auto video tracking function are optional functions.
  • Support multiple discussion modes: free, first in first out, and limited discussion.
  • Support free discussion quantity of 1, 2, 3 and 5.
  • With one balanced XLR output, one REC in/out and TEL in/out, RS232 & USB for PC connection
  • Two-way communication system by CAT6 cable/RJ45 port or 8 wire cable/ 8 PIN port.
  • Two RJ45 ports for extension controller, four RJ45 ports for microphone connection.
  • Two 8 PIN ports for extension controller, four 8 PIN ports for microphone connection.
  • Built-in DSP & feedback suppressor & LF/HF filters.
  • With 2.8” LCD display for system program and monitoring
  • Up to international conference equipment, electrical certification standards of IEC 60914.
  • MS-CS900V is controller with auto-video tracking function support 6 HD cameras.
Category: Tag:

Description

The Microsound MS-CS900 Digital Conference System is an easy, safe and reliable solution that integrates all requirements into one central control unit where the operator can centrally control all functions and features. The software adopts a modular design which includes:

  • Unit detection module
  • Motion Management Module
  • Venue Management Module
  • Personnel Management Module
  • Conference Control Module
  • System Control Module
  • User Management Module

Specifications

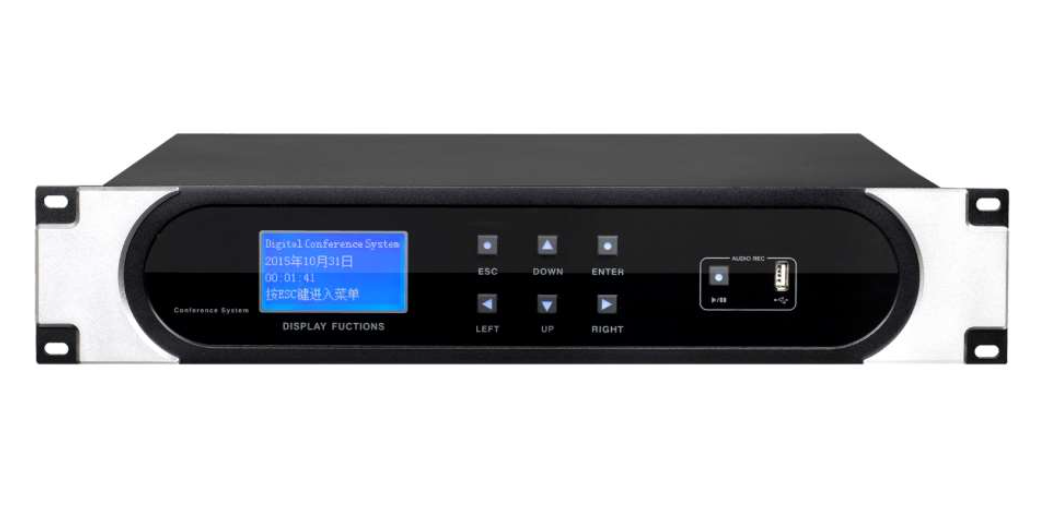

Model MS-CS900
Description Digital Conference System Controller
Function Discussion & Recording (front panel USB)
Optional Function Voting, simultaneous interpretation and avideo tracking system
System Capacity 100 units and 1000 units by cascading     more extension controllers
Power Supply AC220V or 115V, 50-60Hz
Power Consumption 30W
THD <0.05%
S/N Ratio >96dB
Frequency Response 20Hz-20KHz
Connectors Two RJ45 ports for extension controller; four RJ45 ports for microphone

Two 8 PIN ports for extension controller, four 8 PIN ports for microphone
Output With one balanced XLR output, one REC    in/out and TEL in/out, RS232 & USB for PC
Dimension 488(W)×360(D)×84(H)mm
Weight 12.7kg
